My friend Wes Lavin is a better photographer than me.
Firstly, he has better equipment than me.
Secondly he travels all over New England just to take pictures in different seasons.
Most of my photographs are closer to home, and I'm not really into photography
Wes in into photography as a retired school teacher

These are some of the many photographs that Wes took early on in the March 2018 sugaring season
The snow is deep and the nights are below freezing --- Perfect for collecting maple tree sap

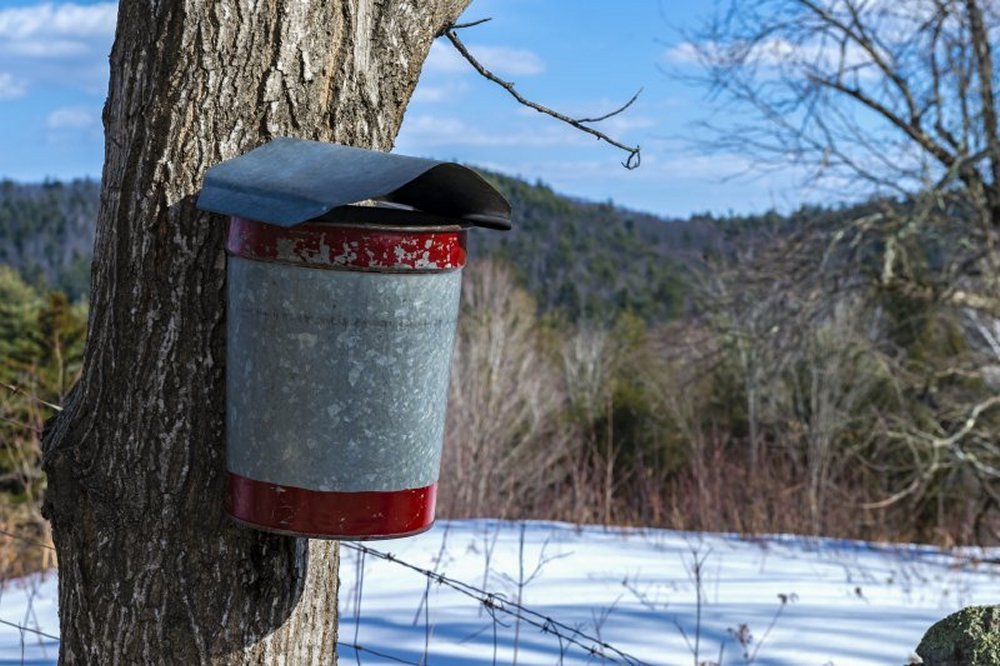

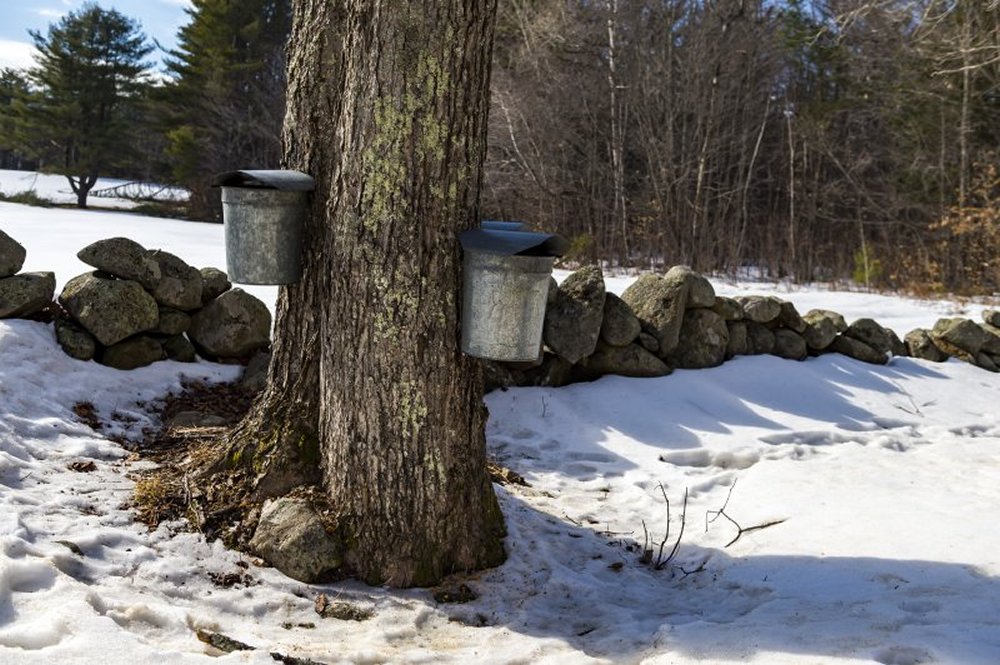

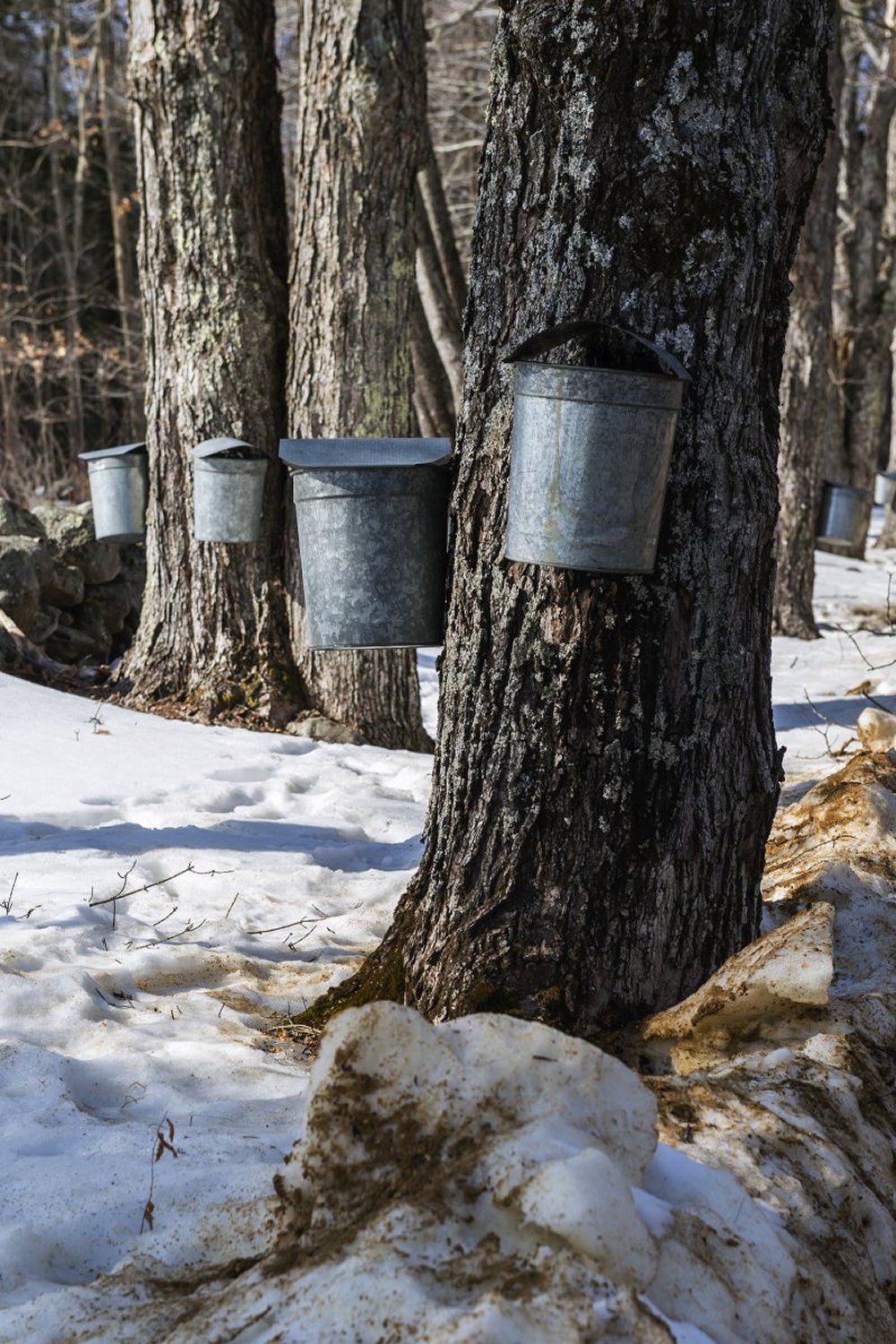

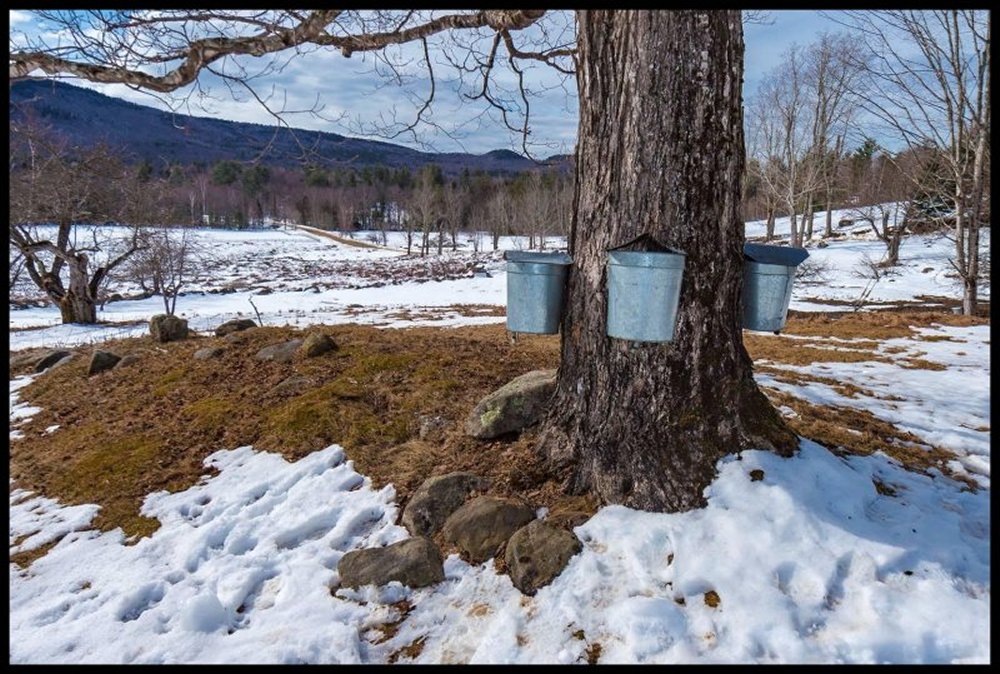

Sometimes sap is still collected in the old way by tapping into trees with collection buckets

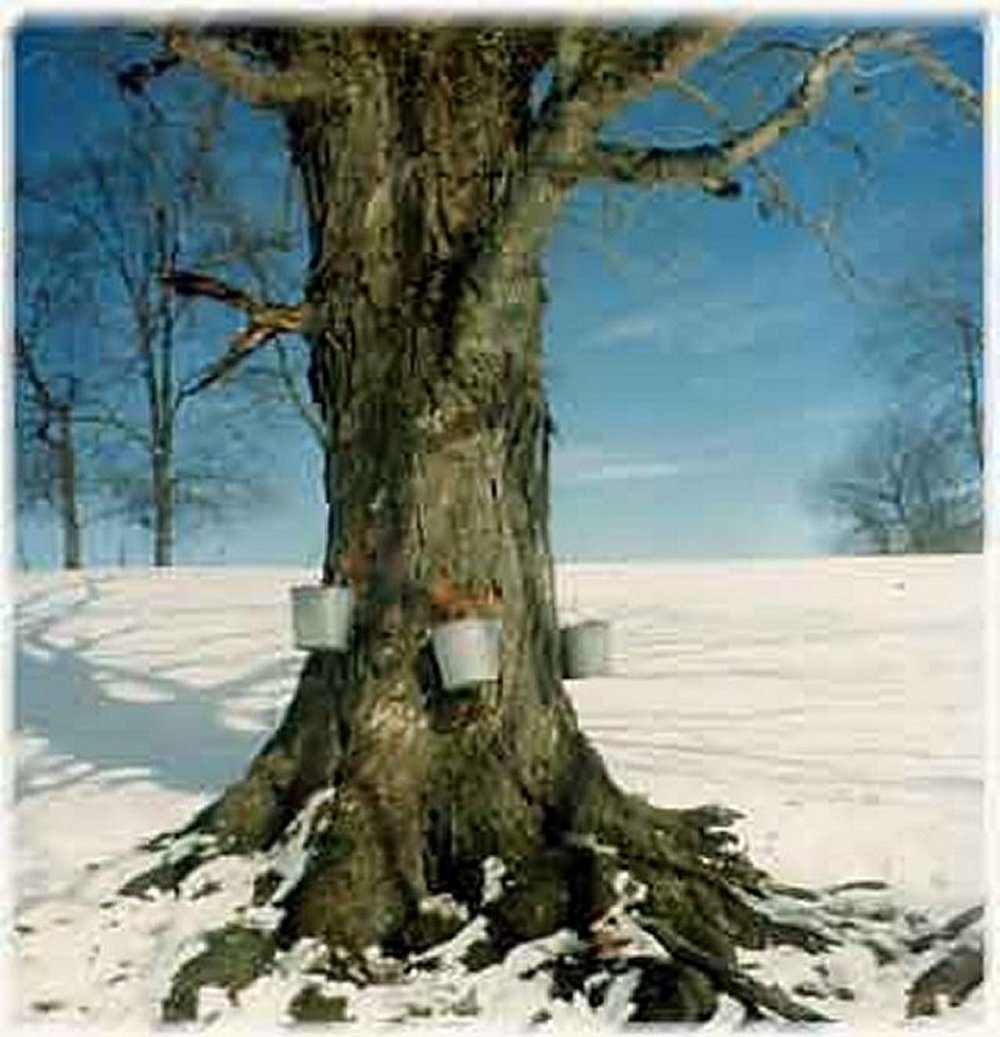

This is one of the maple trees in our wild flower field





The tree buckets are then dumped into barrels that are usually hauled on a sled or wagon pulled by a tractor or team of horses
In modern times hoses replace the tree buckets and wagons are loaded by hose barrels to be hauled to where the sap can be boiled

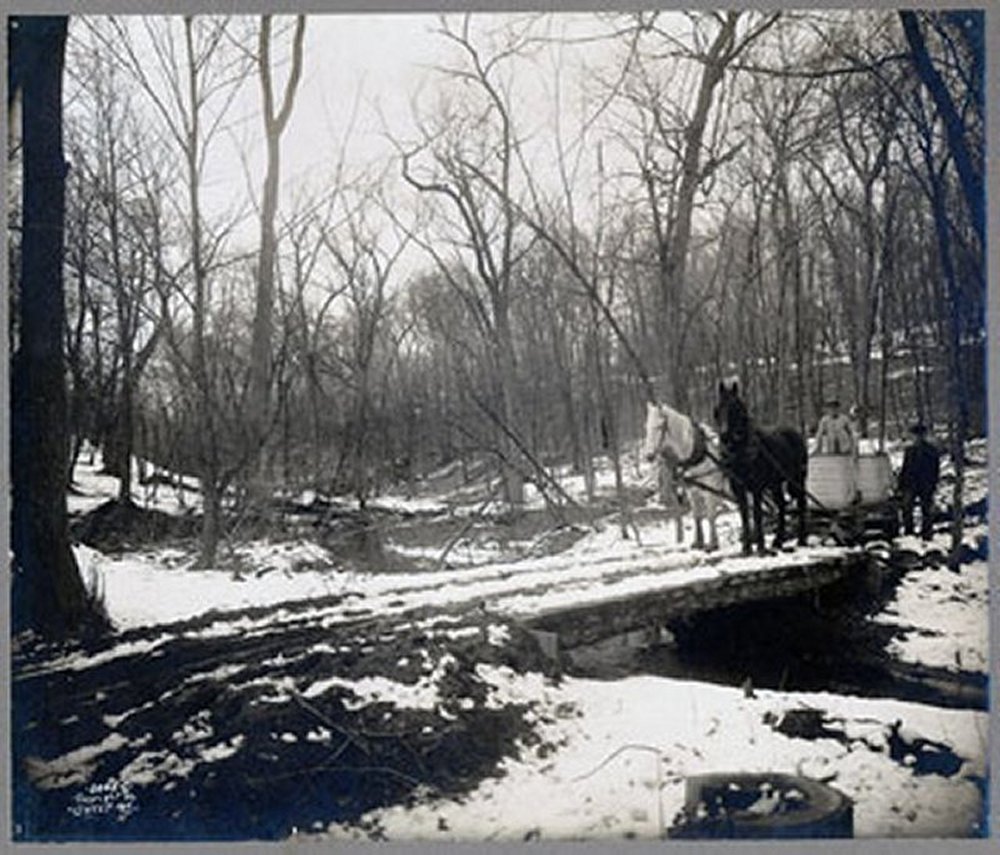

This is the latest horse team picture sent to me by Wes in 2018 --- Looks like a team of Belgian horses

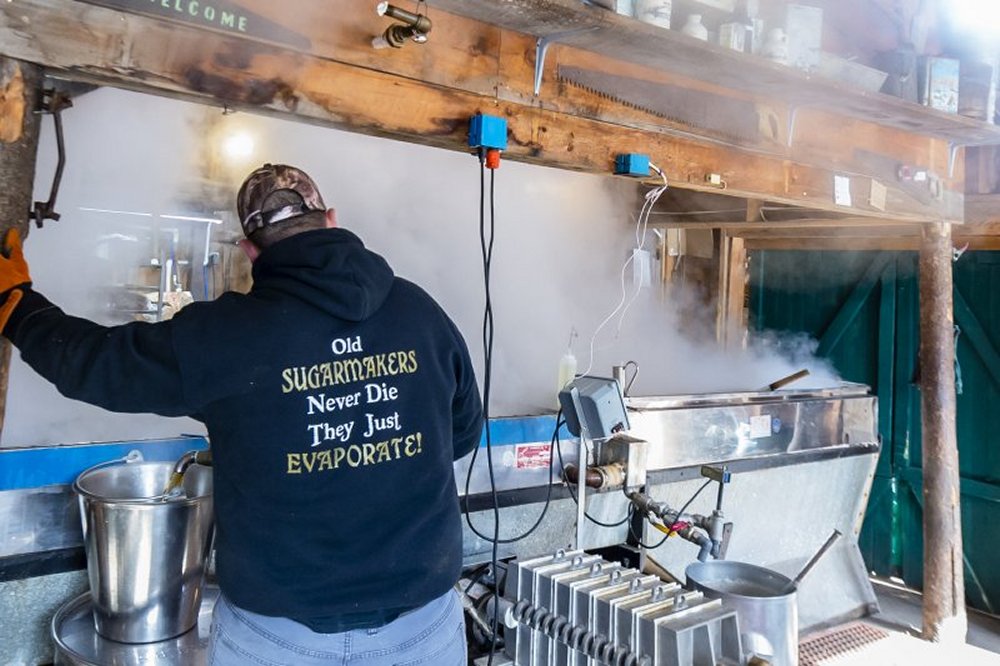

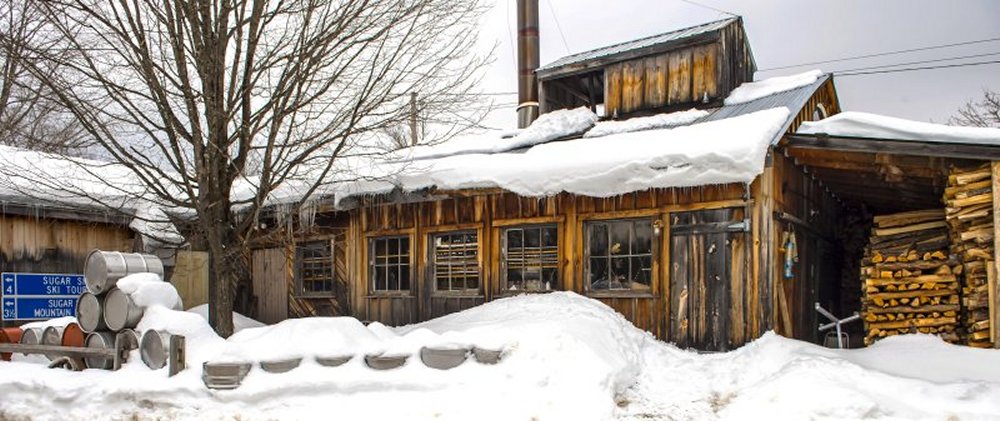

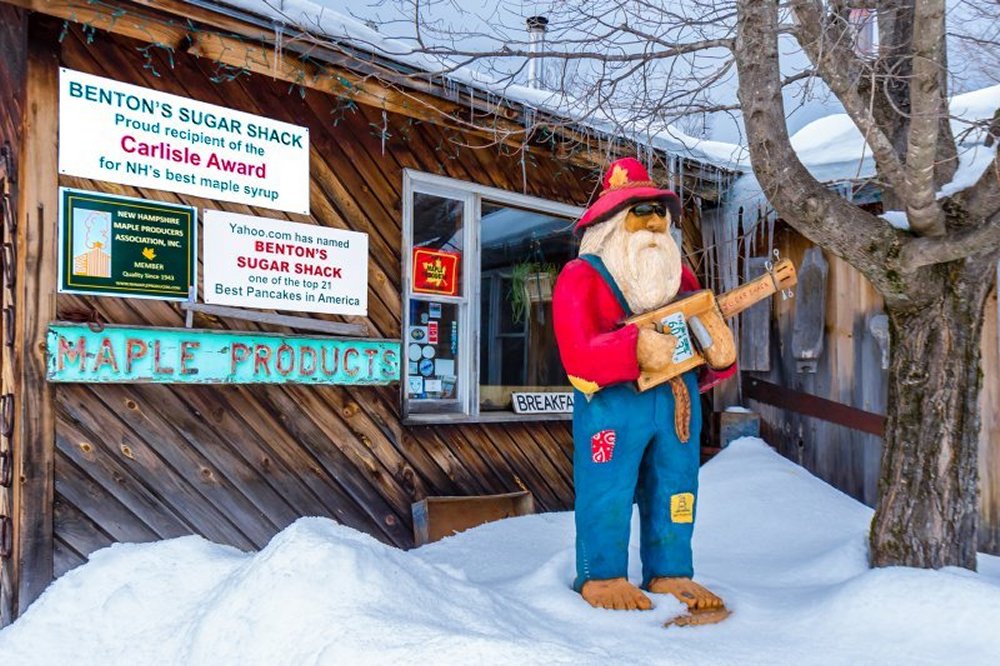

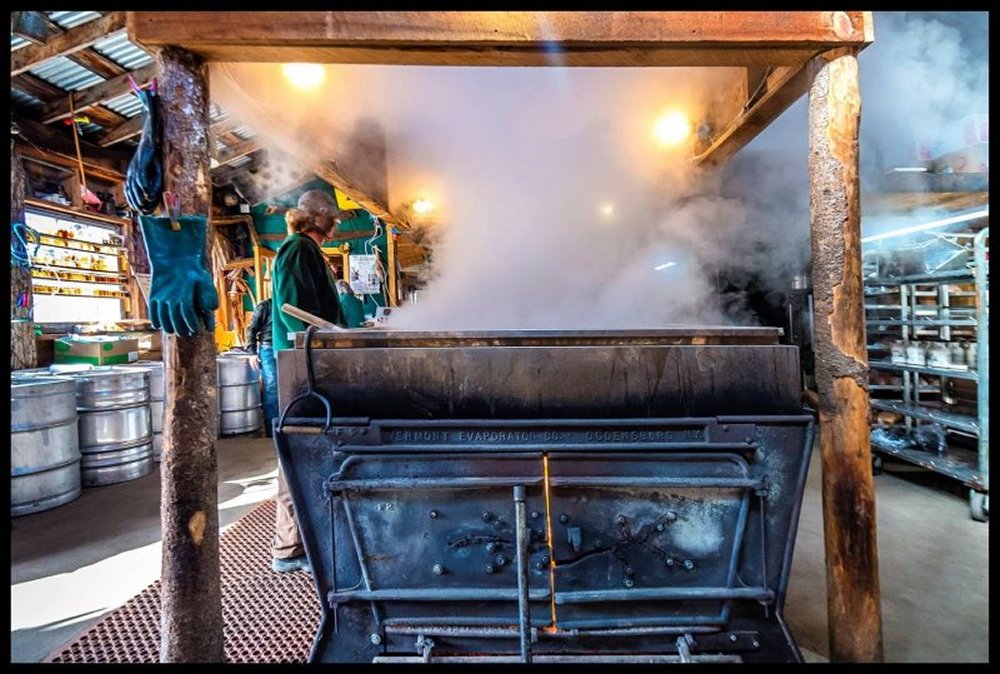

Sometimes the sap is taken to old fashioned small sugar shacks to be boiled down















Mount Cube Farm in Orford



Maple Syrup --- https://en.wikipedia.org/wiki/Maple_syrup

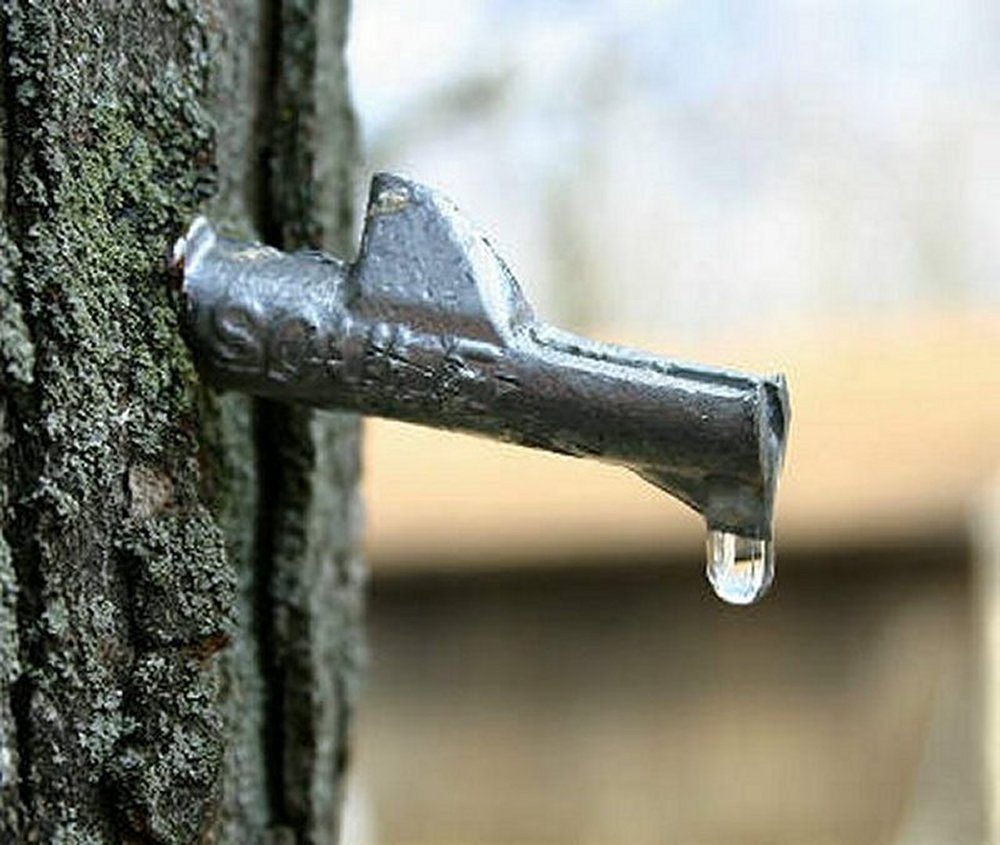

Maple syrup is a syrup usually made from the xylem sap of sugar maple, red maple, or black maple trees, although it can also be made from other maple species. In cold climates, these trees store starch in their trunks and roots before the winter; the starch is then converted to sugar that rises in the sap in late winter and early spring. Maple trees are tapped by drilling holes into their trunks and collecting the exuded sap, which is processed by heating to evaporate much of the water, leaving the concentrated syrup.

Maple syrup was first collected and used by the indigenous peoples of North America, and the practice was adopted by European settlers, who gradually refined production methods. Technological improvements in the 1970s further refined syrup processing. The Canadian province of Quebec is by far the largest producer, responsible for 70 percent of the world's output; Canadian exports of maple syrup in 2016 were C$ 487 million (about US$ 360 million), with Quebec accounting for some 90 percent of this total.[1][2] Vermont is the largest producer in the United States, generating about six percent of the global supply.

Maple syrup is graded according to the Canada, United States, or Vermont scales based on its density and translucency. Sucrose is the most prevalent sugar in maple syrup. In Canada, syrups must be made exclusively from maple sap to qualify as maple syrup and must also be at least 66 percent sugar.[3] In the United States, a syrup must be made almost entirely from maple sap to be labelled as "maple", though states such as Vermont and New York have more restrictive definitions (see below).

Maple syrup is often eaten with pancakes, waffles, French toast, oatmeal or porridge. It is also used as an ingredient in baking and as a sweetener or flavouring agent. Culinary experts have praised its unique flavour, although the chemistry responsible is not fully understood.



. . .

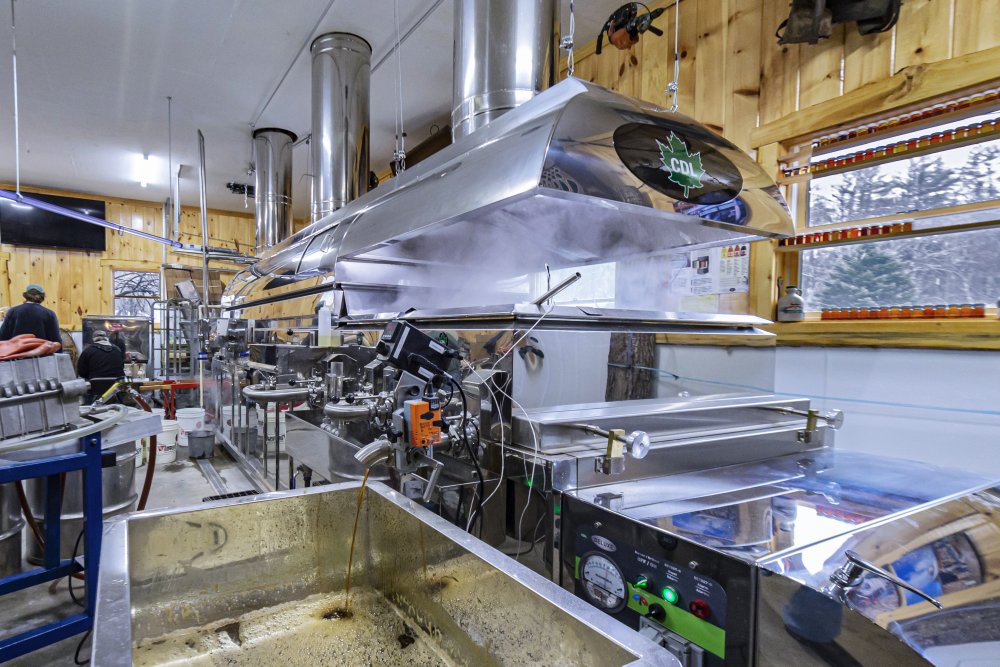

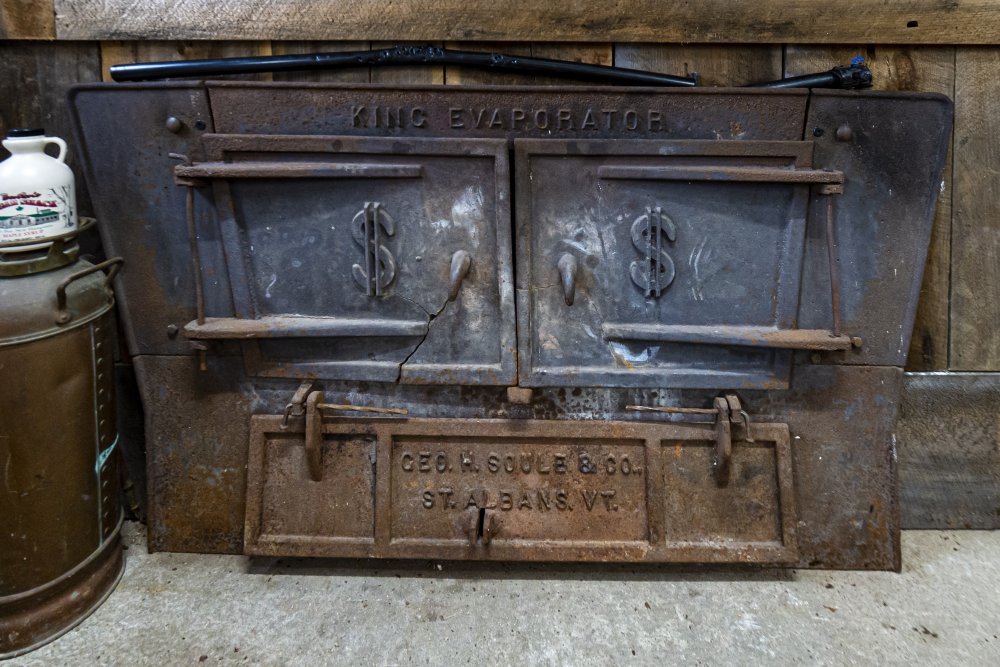

Open pan evaporation methods have been streamlined since colonial days, but remain basically unchanged. Sap must first be collected and boiled down to obtain pure syrup without chemical agents or preservatives. Maple syrup is made by boiling between 20 and 50 volumes of sap (depending on its concentration) over an open fire until 1 volume of syrup is obtained, usually at a temperature 4.1 °C (7.4 °F) over the boiling point of water. As the boiling point of water varies with changes in air pressure the correct value for pure water is determined at the place where the syrup is being produced, each time evaporation is begun and periodically throughout the day.[24][29] Syrup can be boiled entirely over one heat source or can be drawn off into smaller batches and boiled at a more controlled temperature.[30]

Boiling the syrup is a tightly controlled process, which ensures appropriate sugar content. Syrup boiled too long will eventually crystallize, whereas under-boiled syrup will be watery, and will quickly spoil. The finished syrup has a density of 66° on the Brix scale (a hydrometric scale used to measure sugar solutions).[31] The syrup is then filtered to remove sugar sand, crystals made up largely of sugar and calcium malate.[32] These crystals are not toxic, but create a "gritty" texture in the syrup if not filtered out.[33]

In addition to open pan evaporation methods, many large producers use the more fuel efficient reverse osmosis procedure to separate the water from the sap.[34]

The higher the sugar content of the sap, the fewer the gallons of sap are needed to obtain one gallon of syrup. 57 gallons of sap with 1.5 percent sugar content will yield 1 gallon of syrup, but only 25 gallons of sap with a 3.5 percent sugar content are needed to obtain one gallon of syrup.[35] The sap's sugar content is highly variable and will fluctuate even within the same tree.[36]

The filtered syrup is graded and packaged while still hot, usually at a temperature of 82 °C (180 °F) or greater. The containers are turned over after being sealed to sterilize the cap with the hot syrup. Packages can be made of metal, glass, or coated plastic, depending on volume and target market.[37] The syrup can also be heated longer and further processed to create a variety of other maple products, including maple sugar, maple butter or cream, and maple candy or taffy.[38]

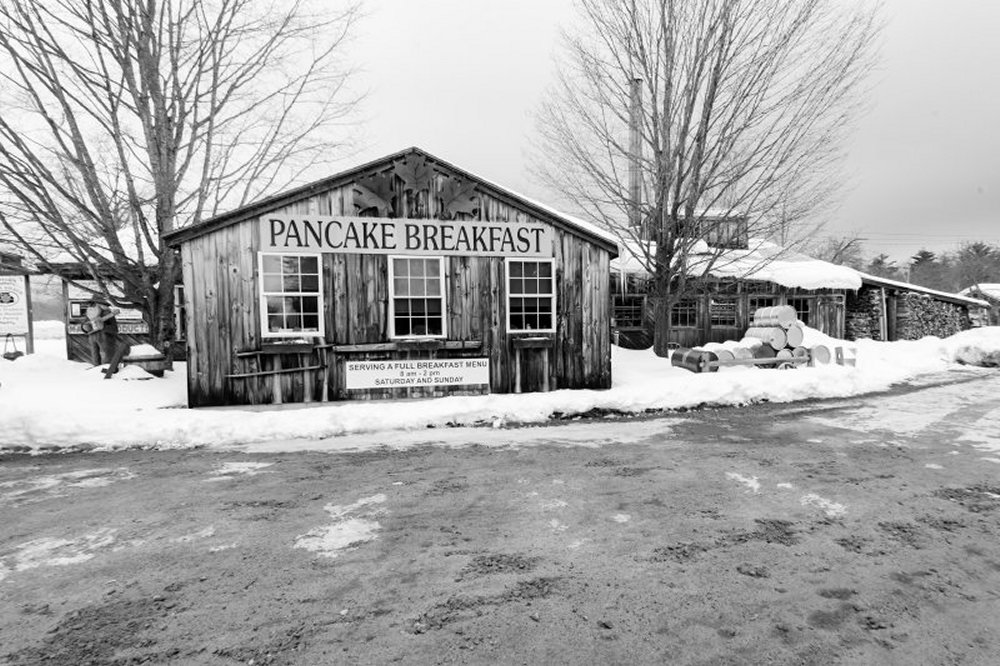

This mountain area has numerous restaurants and gift shops that feature maple syrup products
